Rod Guide for Deviated Well Application
Rod Guide Material Choices
| Material | PPA/PPS | PA66 | UHMW-PE |
|---|---|---|---|
| Bending Strength, MPa | ≥254 | ≥103 | 26～28 |
| Impact Strength, kJ/m2 | ≥13 | ≥70 | 38～40 |
| Friction Coefficient | ≤0.018 | ≤0.024 | ≤0.036 |
| Density, kg/m3 | 1.35×103 | 1.44×103 | 0.936×103 |
| Max. Temperature, ℃ | ≥180 | ≥200 | ≥85 |
Mold-on Guide Type
Straight-Vane Mold-on Guide
This is the most popular guide type to centralize sucker rod string and control wear. It is suitable to non-corrosive environment. Depends on the application, this guide is available in 4” (standard) and 7” (XL) in length.
Slant-Vane Mold-on Guide
For corrosive environment with paraffin buildup, the slant-vane mode-on guide can effectively remove it. This guide is available in 4” (standard) length.
Wide-Vane Mold-on Guide
Various designs of wide-vane mold on guide designed to perform under high side loading. Its wearable volume more than doubles that in straight-vane guide and hence ensures its durability. Cross-section of deferent designs of wide-vane mold-on guide are illustrated below.
Field-install Rod Guide
The field-install rod guide provides a cost-effective and flexible solution to guide sucker rod string.
Rod Guide for PCP Application

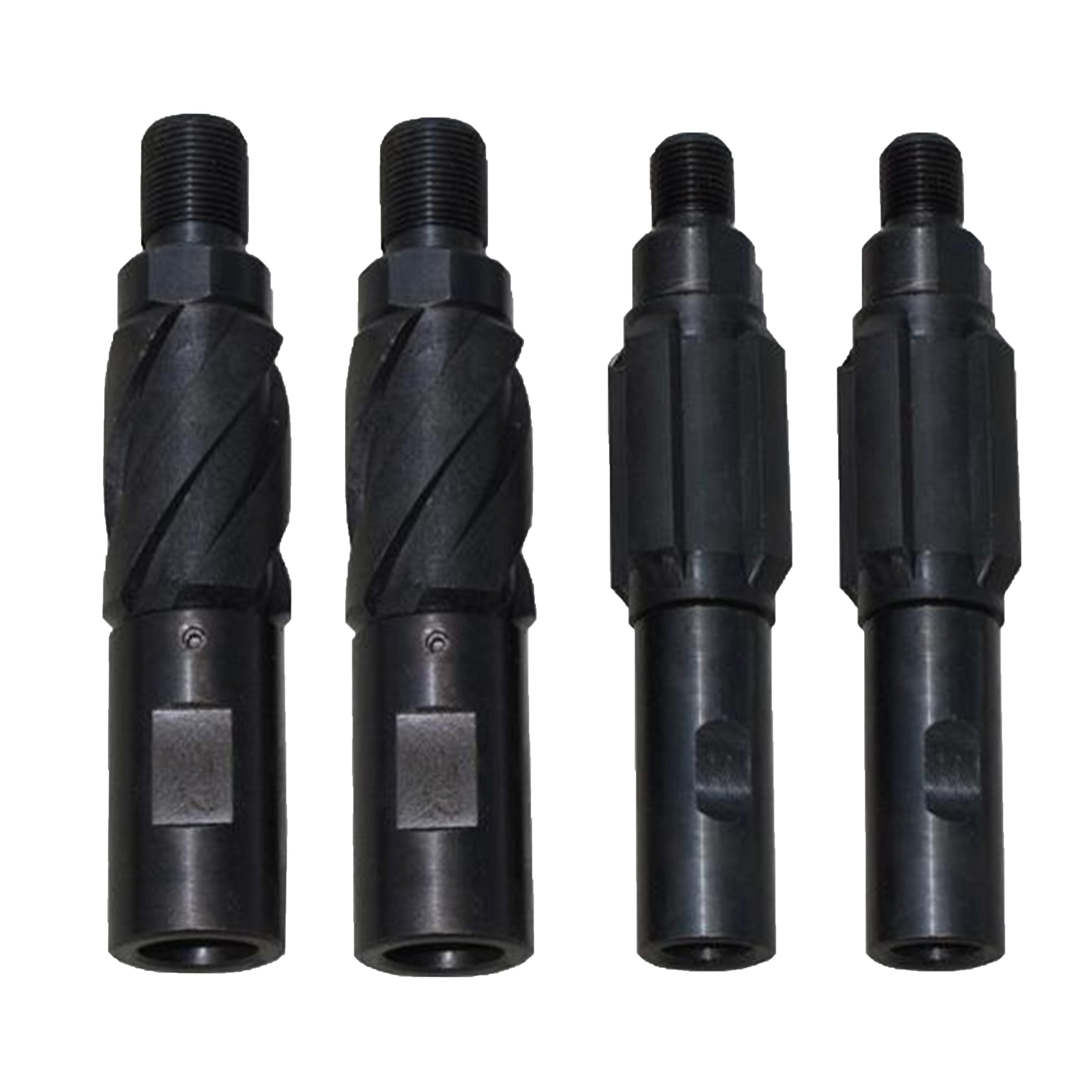

Spin guide can significantly reduce friction during PCP operation and improve product life. Mechanical dimension of Spin Guide is as following:
| Rod Body Size | Guide Outer Diameter (mm) | Guide Length (mm) | Suitable Tubing I.D. (mm) | |
|---|---|---|---|---|
| 3/4” | 19.05mm | 46 | 246 or Customized | 50 or Larger |
| 7/8″ | 22.2 mm | 58 | 246 or Customized | 62 or Larger |
| 1″ | 25.4 mm | 71 | 246 or Customized | 76 or Larger |
| 1-1/8″ | 28.58 mm | 71 | 246 or Customized | 76 or Larger |
| 1-1/4″ | 31.75 mm | 71 | 246 or Customized | 76 or Larger |
Spindle Material: 4135；Sleeve Material: PA66
Guided Coupling
In addition to the guiding solution for sucker rod, guided coupling offers flexible and reliable solution that can be easily replaced during well maintenance work.
